Name: Brass level gauge set with valves L135 BSP 1/4''x10
SKU: 14373
Availability: InStock

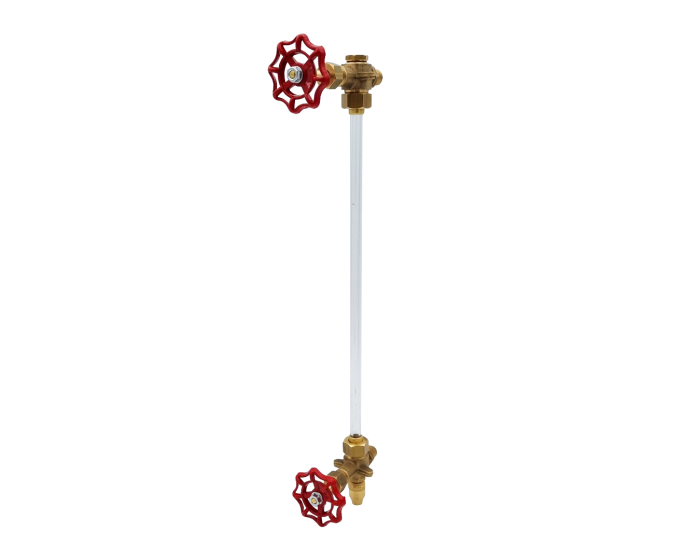

Brass level gauge set with valves L135 BSP 1/4''x10

Brass level gauge set with valves L135 BSP 1/4''x10

€0.00 (excl. btw)

The L 135 indicator is an economical solution for displaying levels of clean, non-aggressive liquids at low pressure and ambient temperature. Needle valves - brass body. Silicone tightness. G threaded fittings.

In stock Subject prior to sales
Categories : Naaldafsluiters

Documenten:

Description
Technical Specifications

Specification	Value
Option certificate 3.1	No
d (mm)	10
Tube diameter (mm)	10
DN	DN8 - 1/4''
Gasket	Silicone
Body material	Brass CW614N
PS (bar)	10
Connections	BSP MM
TS max (°C)	90
TS min (°C)	-10
Warranty period	1 year
In categories	Level gauges
